Wireless Torque Measuring System

2.677,39

Measure high-precision wireless!

SKU: Telemetrie Kit 40-010 Category:

Description

Article description

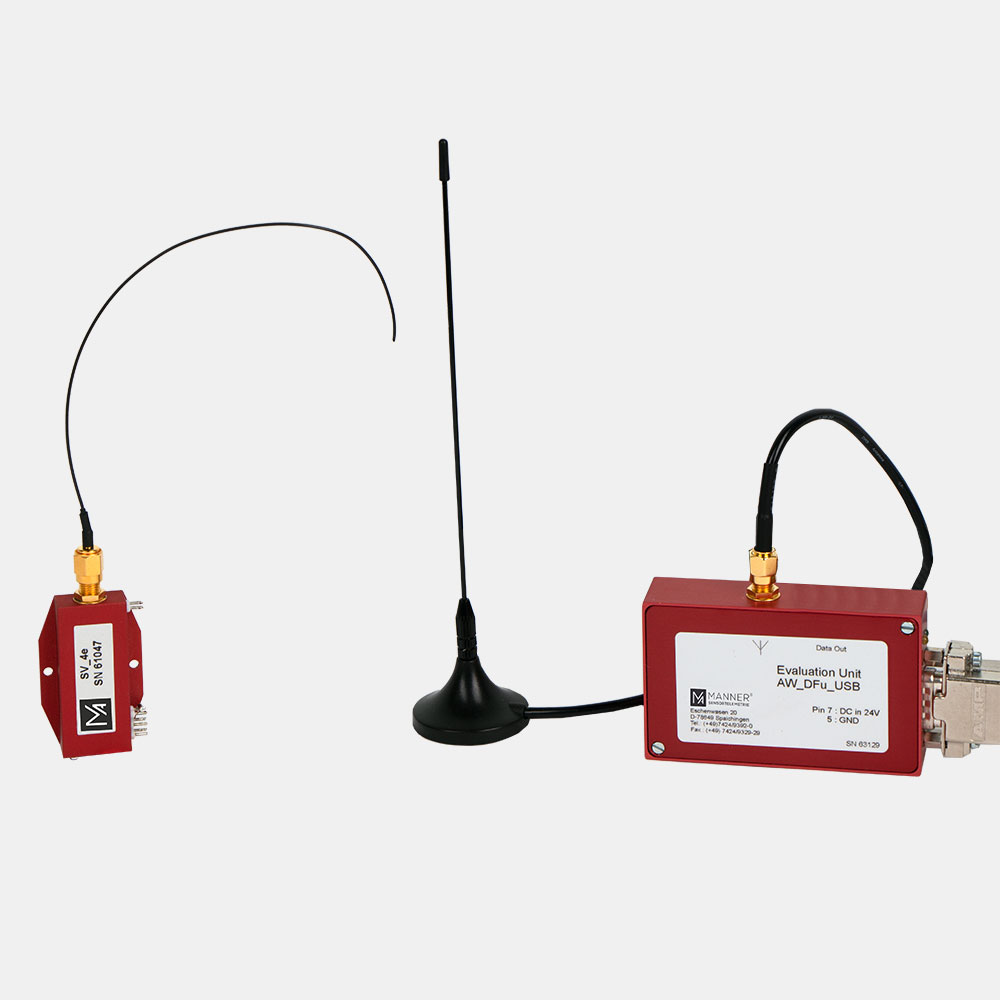

Wireless Torque Measuring System consisting of:

  • Sensor Signal Amplifier
  • Radio-transmitting Antenna
  • Radio receiving Antenna
  • Evaluation Unit
  • Documentation
  • Magnetic ON / OFF switch

Measuring system

  • Measuring range (default): 1 mV/V
  • Signal resolution: 16 Bit
  • Linearity and hysteresis: <0.25%
  • Range: 30 m in free-space
  • PCM technique
  • Maintenance-free

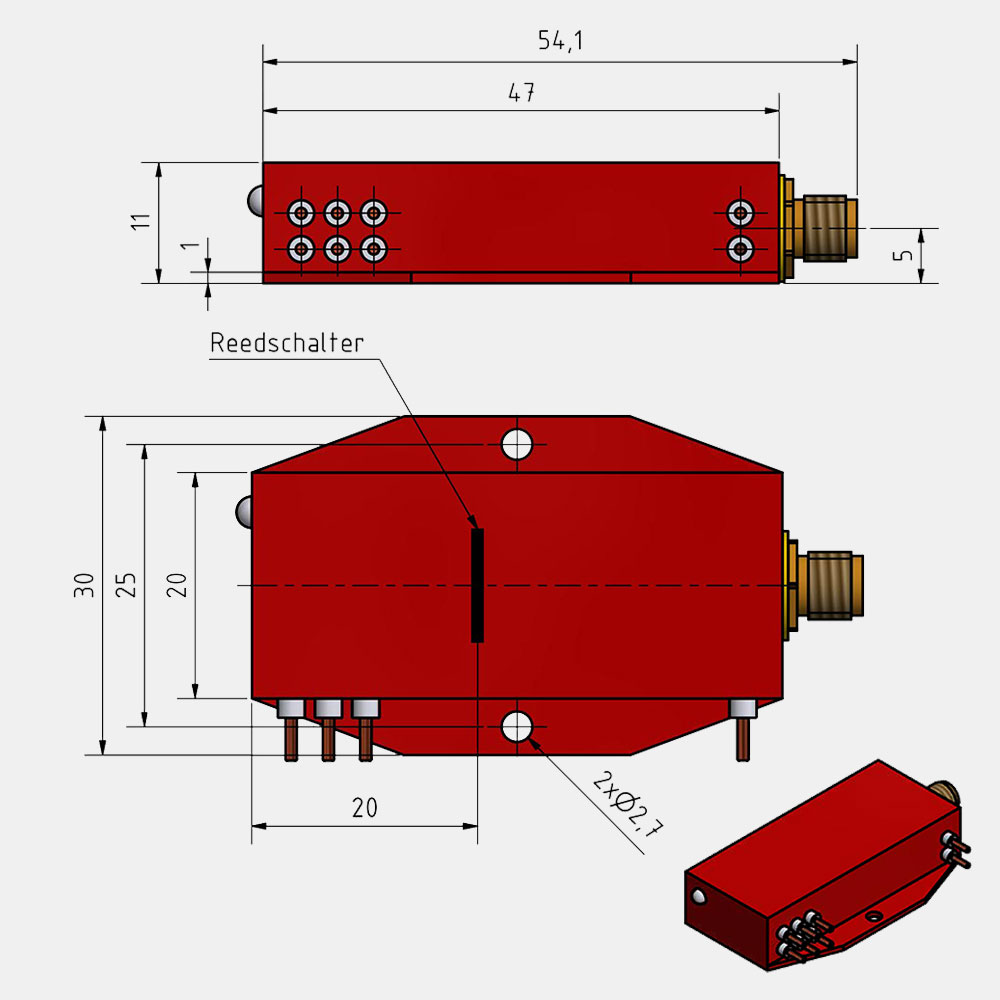

SV_4e

  • Number of channels: 1
  • Strain gauge bridge (external): 350 / 1.000 ohms
  • Full / Half / Quarter bridge
  • Measuring range (default): 1 mV/V
  • Modifiable by resistance: 0.1 … 10 mV/V
  • Signal bandwidth: 0 … 1 kHz
  • Zero and gain drift: ±0.05%/°C
  • Transmission frequency: 433 MHz
  • Transmission power: 10 dBm
  • Range: 30 m in free-space
  • Battery supply: 3.6 … 10.0 VDC, 60 mA
  • Reverse polarity protection
  • On the shaft
  • Dimensions: 11 x 30 x 47 mm
  • Temperature range: -10 … +85°C
  • Protection class according to EN 60529: IP42

Rot_FuD

  • Wire length: 200 mm
  • Connector: SMA plug
  • Temperature range: -10 … +85°C
  • Protection class according to EN 60529: IP42

A_FuSt

  • Magnetic base
  • Height: 170 mm
  • Coaxial cable: RG 174, 2 m
  • Connector: SMA plug
  • Temperature range: -10 … +85°C
  • Protection class according to EN 60529: IP42

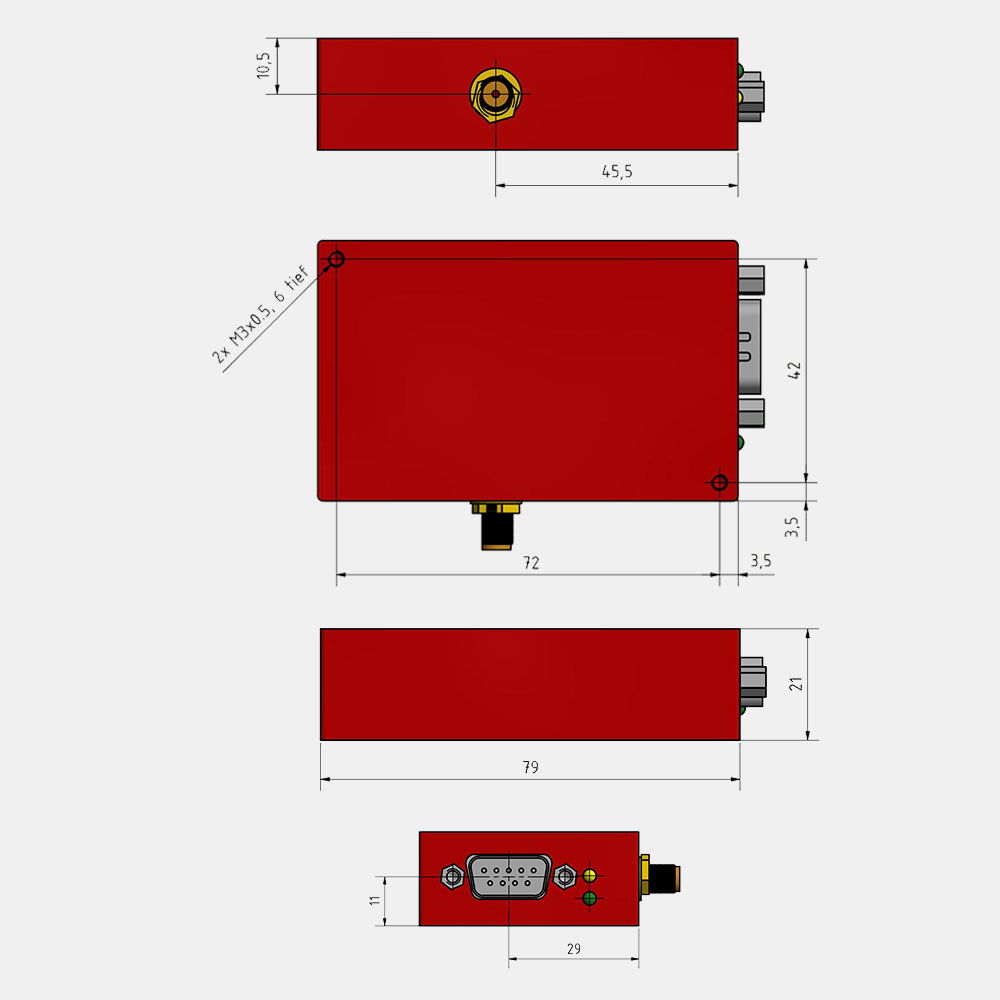

AW_D_Fu

  • with separate antennas
  • Number of channels: 1
  • Analog output voltage: 0 … ±10 V / 50 ohms
  • Signal bandwidth: 0 … 1 kHz
  • Zero and gain drift: ±0.05%/°C
  • Supply voltage: 24 VDC ±10%, 220 mA
  • Connection: D-SUB-9 plug
  • Dimensions: 90 x 50 x 22 mm
  • Temperature range: -10 … +55°C
  • Protection class according to EN 60529: IP42

VKab_D_ana

  • Cable length: 2 m
  • Connector: D-SUB-9 socket
Included in delivery

  • Sensor signal amplifier SV_S4e
  • Rot_FuD
  • A_FuSt
  • Evaluation Unit AW_D_Fu
  • D-SUB-9 socket for systems with analog data output
  • Documentation on USB-Stick

Not included in delivery

  • Strain gauge bridge
  • Completion resistors
  • Batteries / rechargeable batteries
