Integrate MANNER telemetry directly into DewesoftX

Seamlessly capture, visualize, and analyze digital measurement data from one or more MANNER telemetry systems, and record it in sync with other measurement systems.

Direct connection between MANNER Telemetry and DewesoftX

The MANNER plugin for DewesoftX enables the direct integration of one or more MANNER telemetry systems into DewesoftX. Configuration is performed using the familiar MANNER Signal Suite.

The configuration file created there is selected in the DewesoftX channel setup. All defined measurement channels are automatically imported and are immediately available for analysis, visualization, and recording.

Request a demo

System Overview

From rotating sensors to real-time analysis

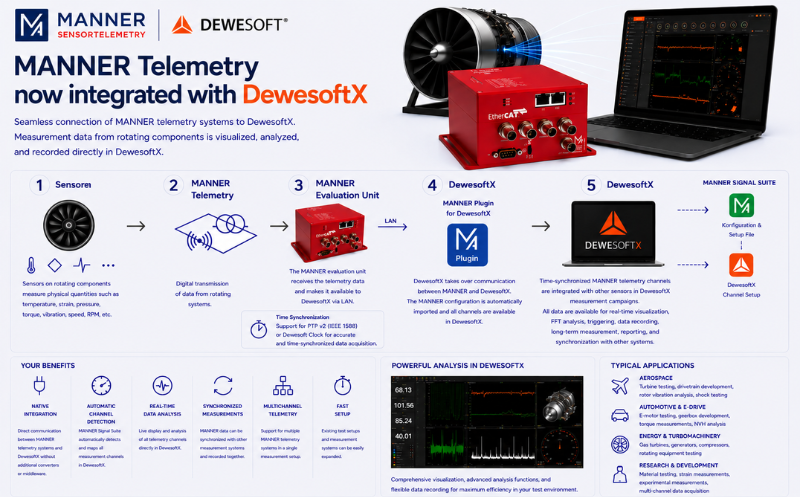

The modern architecture integrates MANNER Telemetry, the data acquisition unit, and DewesoftX into a seamless measurement workflow.

Advantages

Why DewesoftX?

DewesoftX reduces the effort required for integration and makes MANNER measurement data directly available within the DewesoftX environment.

Native Integration

Direct communication between MANNER telemetry systems and DewesoftX without the need for additional converters or middleware.

Automatic channel transfer

The measurement channels defined in the MANNER software are automatically imported into DewesoftX.

Real-time data analysis

Real-time display and analysis of all telemetry channels directly in DewesoftX.

Synchronized measurement data

MANNER data can be recorded in sync with other measurement systems.

Multichannel telemetry

Support for multiple MANNER telemetry systems within a single measurement application.

Quick setup

Existing test benches and measurement systems can be easily expanded.

Applications

For demanding test bench and development environments

Ideal for rotating measurement tasks where data must be evaluated reliably, synchronously, and in real time.

Aerospace

Turbine test benches
Engine development
Rotor monitoring
High-speed measurements

Automotive & eDrive

Electric motor test benches
Transmission development
Torque measurements
NVH analyses

Energy & Turbomachinery

Gas turbines
Generators
Compressors
Rotating test benches

Research & Development

Material testing
Strain measurements
Highly dynamic measurement tasks
Multi-channel data acquisition

Technical Components

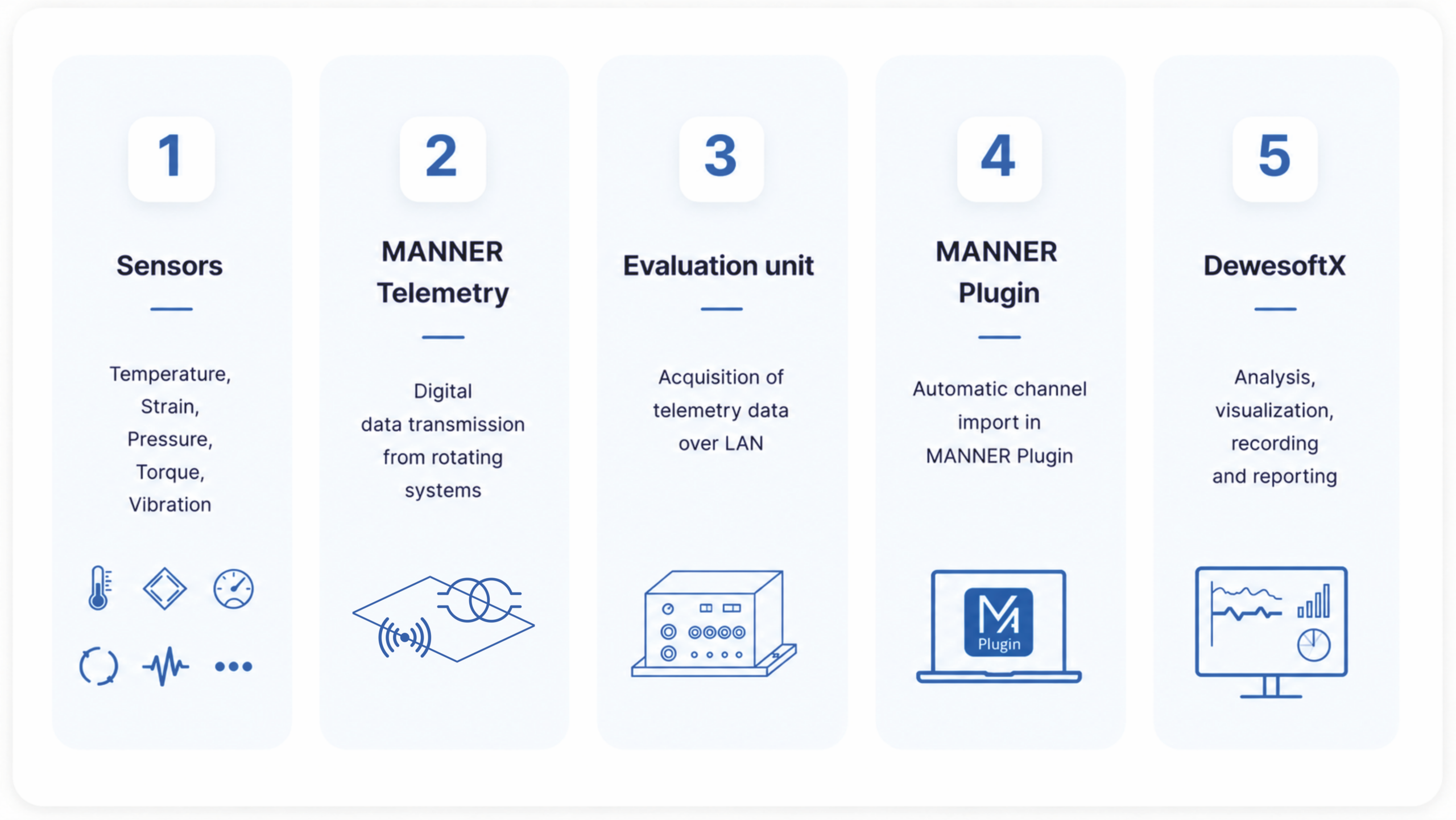

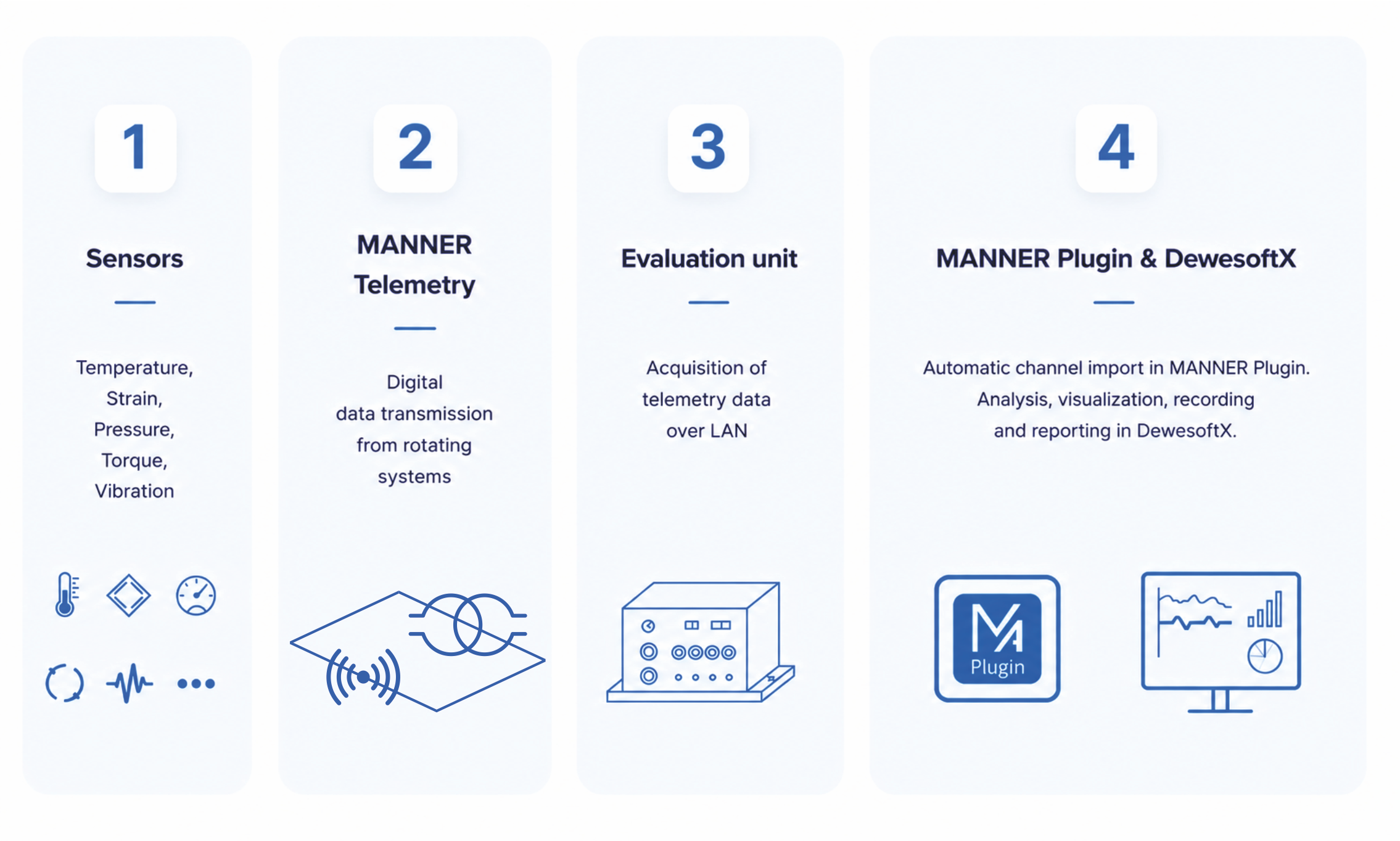

An Overview of the Architecture

MANNER Telemetry system

Digital transmission of sensor data from rotating systems.

MANNER Evaluation Unit

Receiver unit for providing telemetry data via LAN.

MANNER Plugin

Plugin for integrating the MANNER configuration into DewesoftX.

DewesoftX

A central platform for data collection, visualization, analysis, storage, and reporting.

Time synchronization

Timestamps for precise measurement campaigns

Reliable time synchronization is essential for the joint analysis of MANNER telemetry channels with other sensors in DewesoftX.

MANNER supports the integration of rotating telemetry data into DewesoftX. Time synchronization is based on PTPv2. The time signal is provided either by an external grandmaster or by a Dewesoft device—such as the SIRIUS XHS. The SIRIUS XHS can itself act as a PTPv2 grandmaster and generate the central time base in the measurement system.

Uniform time base

Rotating MANNER measurement channels can be recorded, visualized, and analyzed in synchronization with stationary sensors, other measurement systems, and DewesoftX channels.
